FR10-TD Features

Speedy Recognition

Fast face recognition algorithm

Face Recognition

A single unit of FR10-TD can accommodate 10,000 users

Masks Detection

Better hygiene with touch-less biometric authentication, masked individual identification increase FAR

HD Camera

Records a snapshot of the user at the time of verification

Palm Recognition

Palm Vein Time Attendance with advanced Touchscreen & Multimedia interface. 3000 palm templates

Network Environment

Standalone or network environment

Real Time Communication

Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa.

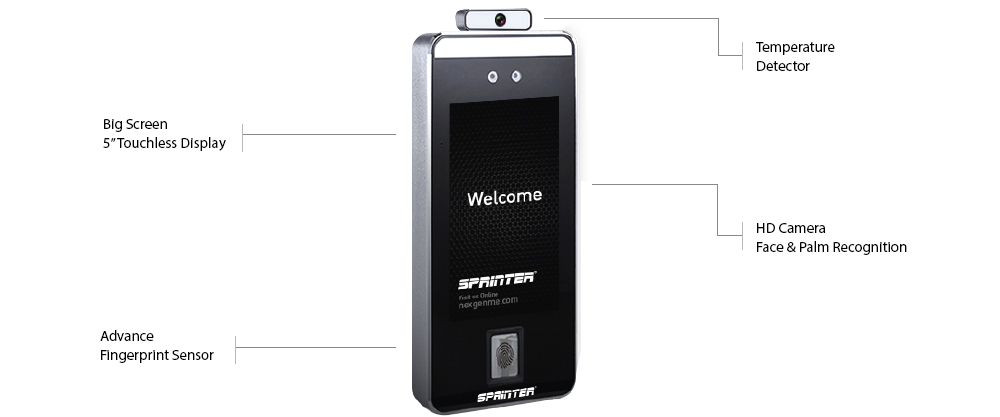

Big Screen

5” Inch Display touch screen, elegant design & interface

Intuitive User Interface

The color displays crisp, high resolution user notification screens. Versatile Communication Interface Flexible API’s

DIMENSIONS

Height: 220 mm

Width: 91.93 mm

Length: 22.5 mm

DISPLAY

Touch Screen: 5″ Display high-definition graphical interface

POWER

110/220VAC ~ 12VDC 3A

IN / OUT LOG

200,000 log

USER CAPACITY

User Capacity: 10,000

BIOMETRICS

Fingerprint Capacity: 10,000

FACE

Face capacity: 10,000
Facial Recognition Speed: <1s

PALM

Palm Capacity: 3,000

NETWORK

Network Equipment
Stand Alone Equipment

COMMUNICATION INTERFACE

TCP/IP

RS232/485

USB Host/Client

Wiegand In/out

ATTENDANCE STATUS

Check in, Check out

Break in, Break out

OT in, OT out

OPERATING

Temperature: 15 °C ~ 30 °C

Humidity: 10% ~ 90%

LANGUAGE SPEAKER

English

MEMORY

900MHz Dual Core CPU

Memory 512 MB Ram / 8G Flash

2MP WDR Low Light Camera

Adjustable Light Brightness LED

OPERATING SYSTEM

Linux

ACCESS CONTROL INTERFACE

3rd Party Electric Lock

Door Sensor

Exit Button

Alam Output

Auxiliary Input
