SIRA Certified
Sprinter FR55 Features
Speedy Recognition
Fast face recognition algorithm
Face Recognition
FR55 can accomodate 5,000 faces Multiple Face Recognition: 5 at the same time
QR Code Reading
Supports QR Code reading via the camera scan
WIFI & LAN
Offering flexibility in network connectivity
BioID Fingerprint Sensor
Revolutionary sensor that can accomodate 10,000 fingerprints (100,000 optional)
Card Recognition
A single unit of FR55 can accomodate 5,000 cards
(optional 50,000)
Network Environment
Standalone or network environment
Real Time Communication
Our communication technology leverages seamless real time data transfer from our devices to third party systems and vice versa
Big Screen
5” Inch Display touch screen, elegant design & interface
Intuitive User Interface
The color displays crisp, high resolution user notification screens. Versatile Communication Interface Flexible API’s

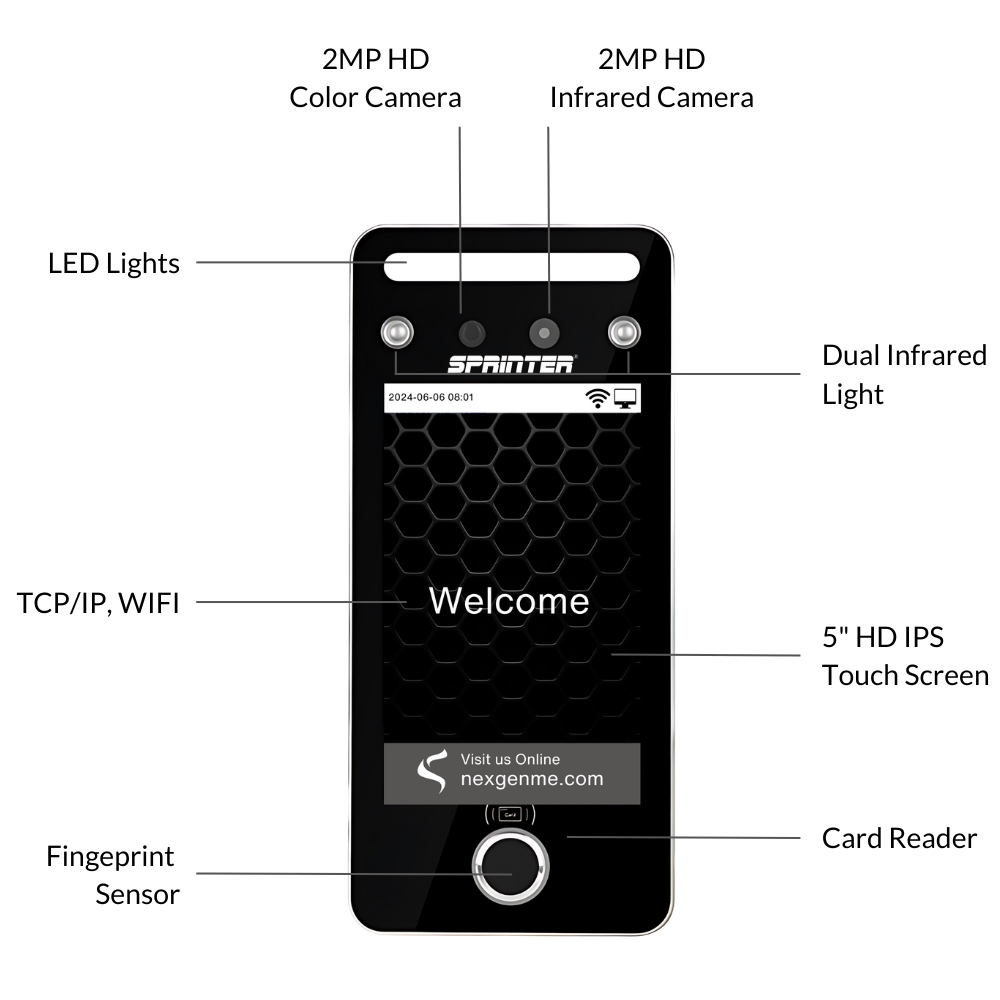

Specifications
DIMENSIONS
Height: 188 mm
Width: 80 mm
Length: 20 mm
DISPLAY
Touch Screen: 5" Display HD Graphical Interface
POWER
110/220VAC ~ 12VDC 2A
IN / OUT LOG
500,000 log
OPERATING SYSTEM
Linux
USER CAPACITY
User capacity: 5,000
(optional 50,000
FACE
Face capacity: 5,000
Face recognition speed: ≤ 0.2S
Multiple People Face Recognition
FINGERPRINT
Fingerprint capacity: 10,000
(optional 100,000)
CARD CAPACITY
Card capacity: 5,000
(optional 50,000)
NETWORK
Network Equipment
Stand Alone Equipment
COMMUNICATION INTERFACE
TCP/IP, WIFI
RS485, USB-Type A
Wiegand 26/34 In/out
ATTENDANCE STATUS
Check in, Check out
Break in, Break out
OT in, OT out
OPERATING
Temperature: 0 °C ~ 55 °C
Humidity: 10% ~ 90%
CAMERA
2MP HD Color Camera, 2MP HD Infrared Camera
Wide Range, Dynamic
CPU & MEMORY
1.2G Dual-Core ARM Cortex-A7
600G (0.6T) NPU, 256M DDR3L RAM
4G EMMC ROM
ACCESS CONTROL INTERFACE
3rd Party Electric Lock
Door Sensor
Exit Button
Alam Output
Auxiliary Input
LANGUAGE SPEAKER
English
